We’re delighted to present the third post in the Android security series. This series aims to cover Android security from the basics to advance. We have previously covered many of the basics and intermediate topics in this series, so in this blog post, we will dive deeper into Android security.

Before reading this post, check out previous blogs about Android basics and Static analysis.

Here is the simple flow diagram we have created for better understanding,

Deep Dive Into Android Security
Approaching activity-based vulnerabilities

In short, white lines indicate prerequisites, red lines indicate deeplink vulnerabilities, and green lines indicate vulnerabilities that can be exploited using webView. The same vulnerabilities may be exploitable if we can control deep links via webView.

Brief Explanation:

We need to start by looking at AndroidManifest.xml. It is important first to identify whether the activity is exported or not. If we found activity exported and permissions are well configured, then it becomes not exploitable. In some cases, activities are not exported, but permissions are incorrectly configured. As long as that’s the case, we may exploit the activity. As a result, there are two scenarios: Either the activity should be exported without permission or not exported, but its permissions should be misconfigured.

In addition, it is important to determine whether the activity is a webview or a deep link, although each activity might have its purpose. Once we confirm these things, we can move and analyze the Java class files. We have to look for sensitive functions in like setAllowContentAccess() or file accessing functions. Now it depends on the purpose of the activity. For example, if the activity uses the loadUrl() function, we can perform multiple things, from rendering HTML to executing javascript. Depending on the code written in the class, it will define our attack surface.

I hope you got some idea about the flow diagram. Now let’s have a quick look into vulnerabilities one by one.

What are Deep Links?

Deep links allow us to trigger an intent via a URL embedded in a website. This allows the app to start and pass the data. We can look for the scheme tag with Browsable Category in AndroidManifest.xml File.


Deep Dive Into Android Security

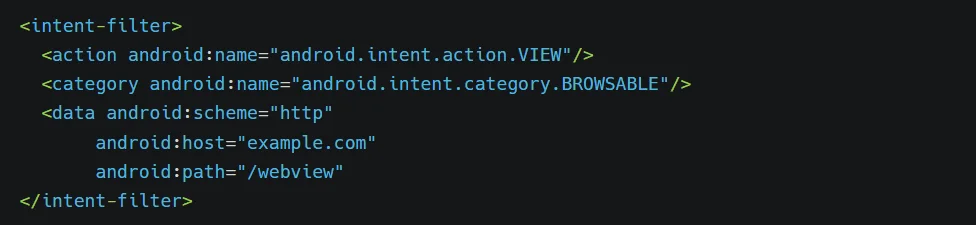

The general representation of deep link is as follows

Deep Dive Into Android Security

So accordingly, our deep link will be, which will help us to trigger the app, which we’ll cover later, but let’s understand how to exploit the deep link.

Loading Arbitrary Sites:

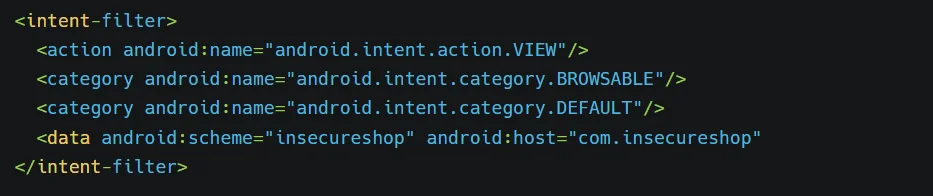

For demo purposes, we need insecureshop apk. In the androidmanifest.xml file, we can look for deep link activity

Deep Dive Into Android Security

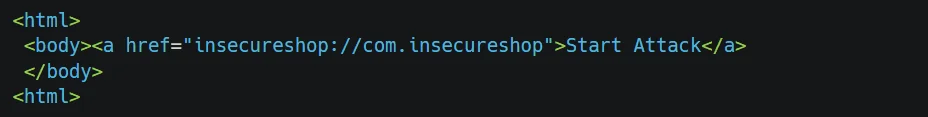

As previously explained, our deep link will be insecureshop://com.insecure shop because we got only this much information from the AndroidManifest file first to test whether we can trigger the app with this. Save the following code in exploit.html

Deep Dive Into Android Security

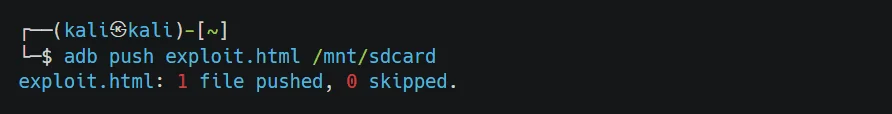

Host the file locally by pushing the exploit on the device

Deep Dive Into Android Security

or Remote server

Deep Dive Into Android Security

Now just open the file in the browser and click on start attack

Deep Dive Into Android Security
deep link

As you can see, we can trigger the app via a deep link on a web page. But wait, that’s not a flaw. It’s a feature. This is just for understanding how deep links actually work.

Let’s check the class of the activity if we find something that might become exploitable.

Deep Dive Into Android Security

If we look into the code, we have two paths, /web and /webview, where the input string “url” will execute according to the condition.

so our exploit will be

Deep Dive Into Android Security

Let’s have a look if it works –

Deep Dive Into Android Security
Loading Arbitrary sites

It’s worked. This is one example of how we can load arbitrary websites to the victim’s app. Depending on the activity class’s path, functions and conditions, this may vary from app to app.

Stealing Sensitive Information:

Another attack vector for exploiting deep links could be stealing sensitive information from the victim app. Let’s assume that while playing with burpsuite or while testing for hardcoded data or by any other method, we found one endpoint, which may be api/v2/apikey="", api/v2/userinfo="", /sessionID="" which can give access to some sensitive information. Now we can design our payload according to the same "insecureshop://com.insecureshop/web?sessionID=" as the victim clicks on that link, the app will trigger, and it will visit the session ID in his app, the webview will render with the directory information present, and we get that info on our server.

This is how we can steal sensitive information from the victim’s app.

Cross-Site Request Forgery:

If any app has functionality triggered with a deeplink, we can trick the user into performing unwanted actions; the best example of CSRF is In the periscope, the app researcher can force the victim to follow. It may vary case by case. For example, if we have delete account functionality which triggers via deep-link, then our link will be “Insecureshop://com.insecureshop/delete”, and our exploit could be

Deep Dive Into Android Security

Insufficient URL Validation:

Most of the time, the app does not correctly validate the URL. For example, it ignores backslash, forward slash, IDN Homographic characters etc., which leads to attacks such as Open Redirection, Injecting malicious script or disclosing internal information. Consider "Insecureshop://com.insecureshop/?url=" This is the expected URL to the app, but what if we might submit “Insecureshop://com.insecureshop/?\\alert()” to the app. It ignored the first URL and executed our payload, or with this domain, it also executed our payload, which will become a significant attack vector for us. Let’s have a look at Webview

What are the webviews?

WebViews are effectively web browsers embedded into Android Apps. WebViews content can be pulled from remote sites or files included in the app. WebViews are vulnerable to the same vulnerabilities affecting any web browsers. However, some configurations can be useful to limit the attack surface. Types: WebChromeClient & WebViewClient.

In web view clients, we can only render the HTML. So no javascript can execute in web view client whereas WebChromeClient has enabled javascript, so XSS payloads possible to execute.

Sample Code to identify webview

Deep Dive Into Android Security
Deep Dive Into Android Security

How WebBrowser & WebView are different?

Deep Dive Into Android Security
Difference between WebBrowser WebView

In a Web browser, we get a UI or shell where the user can search the user gives something input. But Accessing Native apps in the browser is not possible. In webview, accessing native apps is possible with the help of the Javascript interface webview because it provides a javascript bridge and Native bridge.

Rendering HTML & Cross Site Scripting:

In case we find a webviewactivity exported without any permissions, we will firstly look for loadUrl(), loadData(), and Javascript enabled() functions. We look for either loading random HTML code or Cross Site Scripting (a bit different than web cause here we don’t have access to Cookies)

The following code is an example. If we found the loadData function firstly, we would store our HTML in one string, and then it passed to the function.

Deep Dive Into Android Security
loadData function exploit

If we have the loadUrl() function, we can directly pass URLs to activity and load arbitrary websites. Let’s see one example where we are able to execute javascript in-app. for this, we need an old version of Traveloka. You get it from here

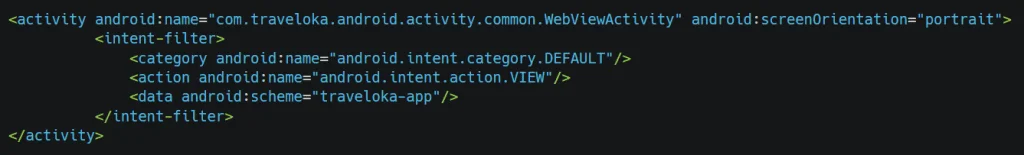

In the android manifest file, we can check that the webviewactivity is exported without configured permission.

Deep Dive Into Android Security

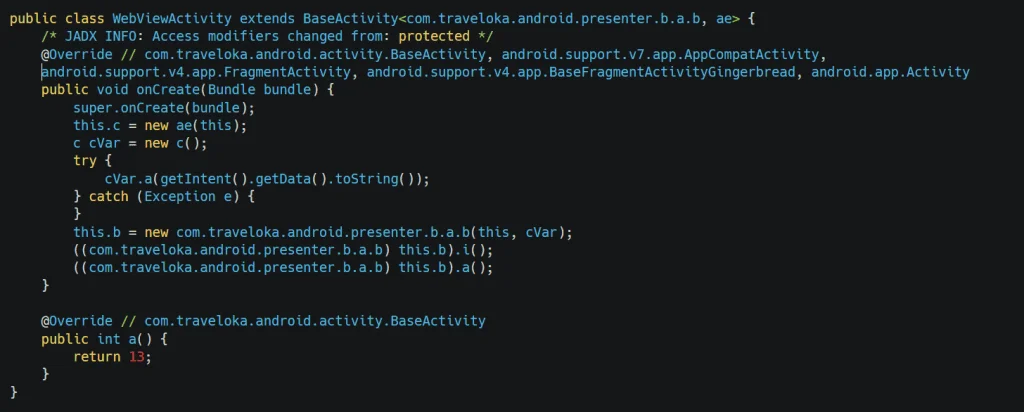

When we look into class, we understand that code is not readable because of obfuscation.

Deep Dive Into Android Security

but after deobfuscation, we can read the code and analyze that the function is accepting string via setUrl function

Deep Dive Into Android Security
code after deobfuscation

To test that, we can start an activity and pass the data to it. We can either test it via adb or create a third-party app., but for now, we will test it with adb by using the following command.

Deep Dive Into Android Security
adb command for xss

Let’s see if it works.

Cross Site Scripting

And it worked! we are successfully able to able to execute the javascript.

Arbitrary File Access:

There is a vulnerability in the system that can allow malicious third-party apps on the device to steal any file from the local storage of the victim’s app. The following functions allow passing file:// scheme and local files via webview.

Deep Dive Into Android Security

but not limited, you can also call loadUrl(“file:///”) function for Arbitrary File Access as we have setUrl() function we can look for if it is possible to steal sensitive files by using the following command where we used “file:///” scheme.

Deep Dive Into Android Security

Let’s see if it’s works.

Arbitrary file Access

And see it’s worked!

In this way, we can test for arbitrary file access

Sensitive Information Disclosure:

If you find addjavascriptinterface() that might be vulnerable to runtime code execution. Check this article. A framework such as the Cordova framework, which is used to build mobile apps, might be vulnerable to accessing internal information, such as accessing a contact list with the help of a navigator.Contacts. Other than this, we have the setAllowConentAccess() function, which invokes content providers to pass URI with content:// scheme, so if any content provider is handling sensitive information, then we might be able to retrieve that information.

Authentication & Authorization Vulnerabilities:

This section is with rare scenarios.

1. Suppose we have three activities login, 2FA & Dashboard activity. If Dashboard Activity is exported and permissions are missing, then after login, we may be directly able to start the dashboard activity. Likewise, if there is no proper configuration, we can bypass 2FA.

2. Now Another case, while looking into source code, we may find the activity of function only accessible by admin and not by normal users, so if that activity is exported and with no mandatory permission, we can start that activity access that functionality. In this way, we can bypass Authorization.

Deep Dive Into Android Security

Privilege Escalation:

Sometimes one activity is protected, but it can start with another export action. For example, read this report. In this report, the researcher started webview activity with exported activity.

These kinds of vulnerabilities are rare and may vary from app to app.

What are the Content Providers?

A content provider is a component that fetches data that the app requests from a repository in a secure manner. Let’s understand with one example how it works.

Deep Dive Into Android Security
Content Provider Example

In this example, we took two apps, WhatsApp and the contact app, so as we know, WhatsApp needs contact access. So firstly, with the help of the content resolver, WhatsApp creates a request for accessing contacts, and then the contact application checks whether the content provider is implemented. If yes, it will look for the data which WhatsApp requested. Then, after checking permissions, the cursor returns to WhatsApp with the requested data.

That was a general example of how things work.

Deep Dive Into Android Security

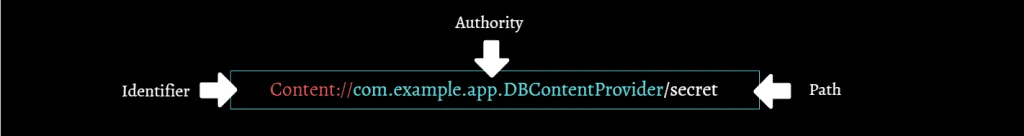

Structure of Content URI

Deep Dive Into Android Security

We can identify content providers under the <provider> tag in the android manifest. While constructing a query, we need to consider two parts –Selection & –Projection. Selection is a part where we need to specify which column or row we want and from which table, whereas in the selection part, we have to specify the condition.

Deep Dive Into Android Security

How to approach the content provider?

Deep Dive Into Android Security
How to approach content provider

In the above flow, we have to first look for a provider that is exported without mandatory permissions. Now sometimes the provider is exported, but there are permissions. Still, the developer forgets to protect paths such as sometimes content://provider/ this is protected, but content://provider/vulnpath is not protected so that we can take benefits of that, now when we have any two of the above condition, we can directly look for data retrieving the data via that provider. Other than this, we look into the provider class, and if we find some misconfiguration, such as Broken Query could be the entry point for SQL injection or if FileProvider is enabled, then either we look for Local File Access or Path Transversal.

Let’s have a look at how practically we can exploit content providers:

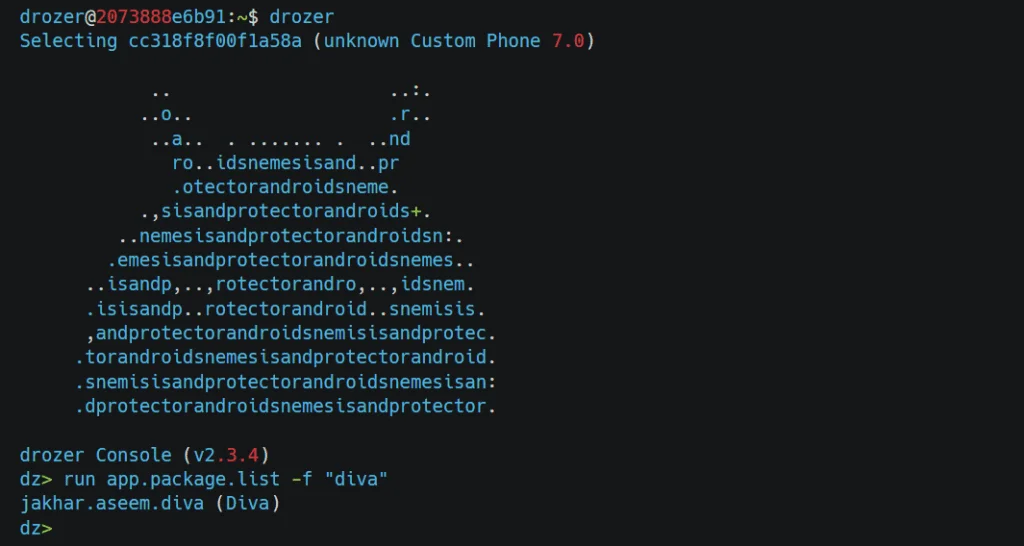

We need a dozer. You will get the dozer from here. If not working correctly, use docker. We also need DIVA for testing:

Open Diva Application and check Access Control Issue – Part 3

A feature allows you to establish a pin for private notes, and those notes can only be accessed after entering the pin. There is no other method to access such notes without first verifying the pin. Now where data operations come from, the content provider is involved.

Deep Dive Into Android Security
Diva Application and Access Control Issue – Part 3

Let’s go with the flow and see if we found something. Check AndroidManifest.xml

Deep Dive Into Android Security

So as we can see, there is a provider which is exported now permissions we can check with the help of drozer. if you need help setting up a drozer, check here. Once the drozer is successfully set up, access the drozer console and check for the package name by the following command. With drozer, we can do a lot of things without going manually. But for now, we only look for the content provider. We can get all the provider URIs from apps using the following command.

Deep Dive Into Android Security

So get back to flow and check permissions

Deep Dive Into Android Security

as there are no permissions, we can check provider class.

After looking into class, we got to know that the notes could be accessible via content://jakhar.aseem.diva.provider.notesprovider/notes URI, so now we can query whether it allows us to access the notes without verifying the pin. We can make the request using the app.provider.query module.

Deep Dive Into Android Security

As we can see in the above image, we can access the notes without having any pin verification. Other than this, we can perform different CRUD operations. Some modules for further testing:

Deep Dive Into Android Security

For example, If we want to delete the row where id = 1, we can use the app.provider.delete the module.

Deep Dive Into Android Security

In this way, we can perform different operations on the content provider.

SQL Injection:

This is different from web SQL injection. Here we only target local databases and need vulnerable content providers to submit our query. By manipulating –the selection & –projection part, we can dump data. Let’s see that when we submit something unexpected in query, how it will react? Such as special character /, *, ‘.

Deep Dive Into Android Security

After submitting “@” as a projection, we get the error with the actual query in the background. Of course, this can also be done through source code, but while doing this, we understand how the provider reacts to our inputs.

Deep Dive Into Android Security

If we want to request whole stuff from notes, our backend query will be

Deep Dive Into Android Security

and input for query will be “*” let’s see if it works.

Yes, it works!

Deep Dive Into Android Security

Now we want tables from the whole system, so we have to look for the SQLITE_MASTER table for that, we can query as follows.

Deep Dive Into Android Security

This query will select everything from sqlite_master and “–” to end the query, and the remaining part will become a comment. Let’s try if it works:

Deep Dive Into Android Security

And it works. In this way, we can approach SQL injection in android. We covered pretty much content providers, from basics to exploitation. let’s see some automated scanners provided by drozer for testing.

SQL Injection Scanner:

By using the dozer, we can also scan for automatic SQL injection.

Deep Dive Into Android Security

File Provider Based Vulnerabilities:

Similar to data, we can access files from the system if we have a file provider.

Path Transversal: (Automatic Scanner)

Deep Dive Into Android Security

Our next component is the broadcast receiver,

Broadcast Receiver

Android OS broadcasts to apps when any event happens in the app or system. Broadcast Receiver helps apps in communicating with android OS and other apps.

Static Broadcast Receivers: These types are declared in the manifest file and work even if the app is closed. E.g. Battery Warnings, Alarms.

This example is for static broadcast receivers doesn’t matter whether the app is open or not when it triggers the condition the broadcast will receive.

Deep Dive Into Android Security

Dynamic Broadcast Receivers: These receivers work only if the app is active or minimized. Eg. OTP Reading

Here is a simple example of WhatsApp. It would only check whether files exist or not whenever the app runs and broadcasts.

Deep Dive Into Android Security

How to exploit them?

Hope you have already configured the drozer, and for demo purposes, we need InsecurebankV2 application. You will get it from here

Let’s check with drozer which is the broadcast used by the application via the following command –

we can notice here that MyBroadCastReceiver is exported, and the permissions are null so any third-party app can start the broadcast, but that’s not enough. We need to check if any sensitive action can be performed. for that, we can just go through the source code of the particular class. Let’s check MyBroadCastReceiver.class and see if we can do anything with it.

In the example above, we can observe two strings that can be used to pass extra data to the broadcast

Deep Dive Into Android Security

To send extra strings to that particular broadcast, we can use --extra string string-name value

then effectively, our command will be

Deep Dive Into Android Security

As a broadcast trigger, we can see that we are getting notifications on the device, and it is almost ready to send the message.

Deep Dive Into Android Security

In this way, we can check whether the broadcasts are vulnerable. It may vary case by case.


To secure Android components, two methods could be used –

There should be no need to export components unless it is necessary to do so. Otherwise, set android:exported=”false”

If the export is necessary, make sure the components are protected by configuring permissions
